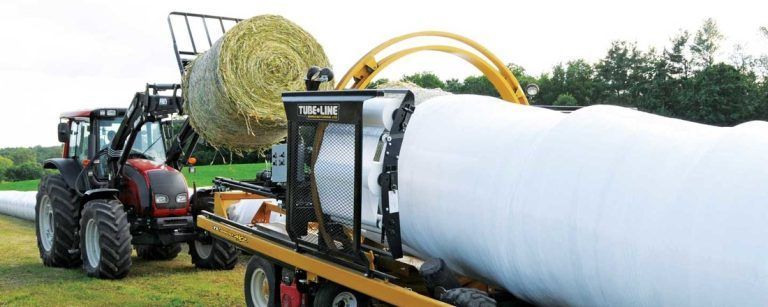

A tractor is wrapping a bale of hay in a plastic bag.

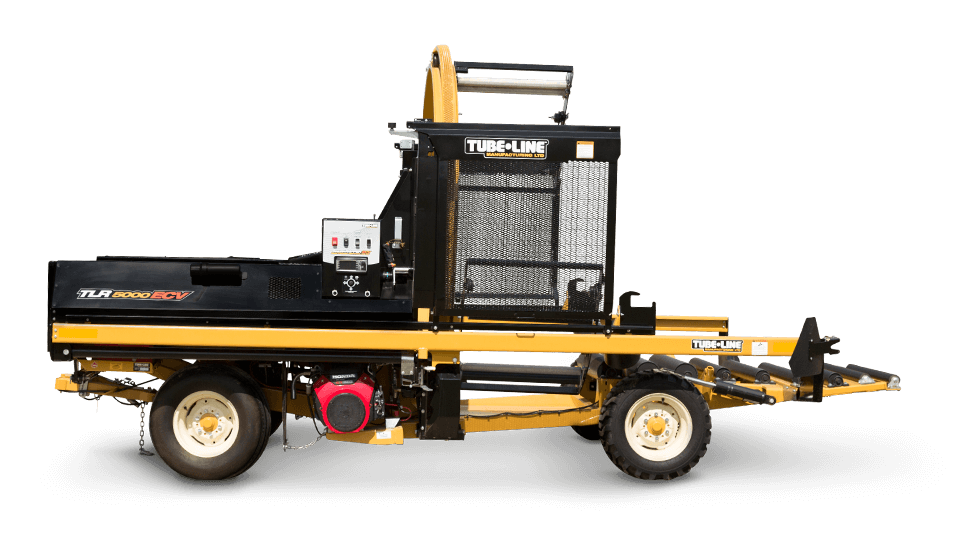

Tubeline TLR5000

Ideal for small to medium sized operations, Tubeline's new TL1700SR Individual Bale Wrapper takes command of your square and round bale wrapping. An easy-to-use wrap counter allows you to set the desired number of rotations of wrap per bale and displays the current rotation.

Standard Features

  • Large Hoop Now Accommodates Bales up to 6'
  • Main Control Panel Wired for Field Installed Options
  • Safety Shut Off Switch on Guards
  • Safety Shut Off Switch on Panel
  • Retractable Tongue
  • Folding Tongue
  • Electric start 13 HP Honda gas engine (18 amp charging system)
  • Low Oil Alert on Engine
  • Spark Arrestor on Engine
  • Hydraulic Manifold
  • Hydraulic Steering
  • Temperature Gauge on Hydraulic Tank
  • 25L / 6.6 USG Fuel Tank with Fuel Pump
  • Limit Switches
  • Adjustable Stroke Length on Charge Table
  • Electric over Hydraulic Controls
  • Fully Automatic Cycling
  • Automatically Idles Down When Cycle Completed
  • Drive Wheel
  • Wrap Carrier
  • Lock Pin (Hoop)
  • Roller Wheels
  • Push Ram
  • Push Ram Cylinders
  • Cross Tube Unloading (to push off last bale) Patented
  • King Pins with Tapered Bearings
  • Road Lights
  • Guide Rollers on Discharge Ramp
  • Quick Start Power Jack
  • Hydraulic Over Centre Cam Axle to Pack Bales Tightly
  • Lug Tires on Rear Axle

Specifications

Cycle Time: Under 30 seconds

Bale Compatibility: Up to 6' Round Bales

Operation Type: Hydraulically Driven (Self-Contained)

Wrap Configuration: Offset Twin Wrap

A machine is wrapping a bale of hay in a field.

The wrapper's integrated bale mat protects the wrapped bale from being punctured as it is dumped.

Two metal gears are sitting on top of each other on a white surface.

Drive Selection

To create the 55% (approx.) stretch of the plastic, the pre-tensioners are knurled which allows them to grip and pull the plastic between the rollers activating the bonding agent in the film.

A large roll of paper is being wrapped in plastic

Film Snap

Standard on all inline Balewrapper models, Tubeline’s Film Snap easily cuts wrap with a single action. Press and hold the Film Snap plunger located beside the operator’s panel until both the tensioners pass, triggering the cutting action. The Film Snap bar snaps into action safely cutting the wrap without stopping the cycle.
