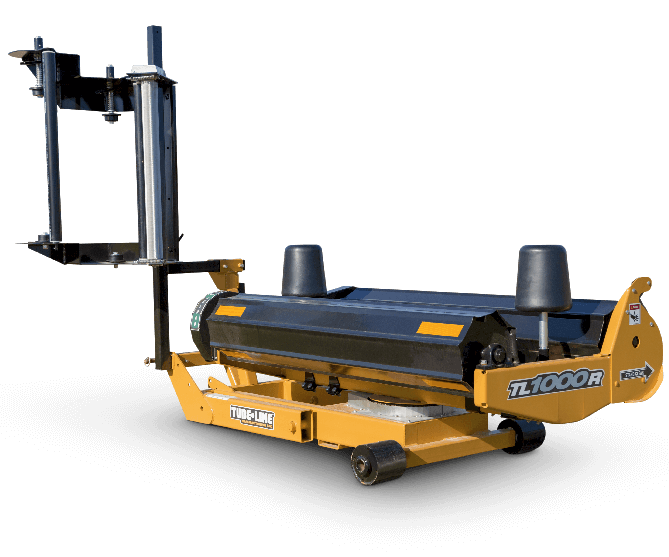

A yellow and black machine is sitting on a white surface.

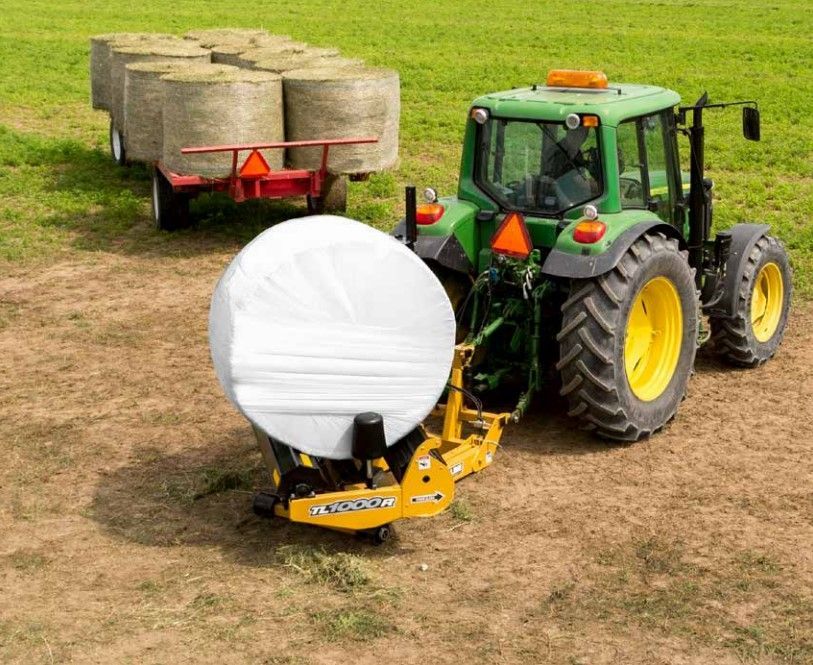

A man is driving a john deere tractor in a field.

Tubeline TL1000R

The TL1000R is a valuable addition to any hay producers arsenal. Easy to maintain and even easier to use, the TL1000R uses tractor hydraulics to spin and rotate the bale ensuring it's completely wrapped every time.

It’s a low-cost, low-maintenance solution that can wrap round bales measuring between 4′ and 5′ in diameter, ideal for small to medium-sized farms.

Standard Features

  • Counter
  • Offset Twin Wrap
  • Wrap Cutter
  • Adjustable Bale Guides
  • Skidshoes/Rollers
  • Bale Support Rollers
  • Transport Lock

Specifications

Cycle Time: Under 30 seconds

Bale Compatibility: Round Bales

Operation Type: Hydraulically Driven

Wrap Configuration: Offset Twin Wrap

HP Required: 30 HP

A green tractor is pulling a trailer full of hay bales.
A yellow and gray device that says tube line on it

Counter

The wrap counter allows you to set the number of wrap rotations for each bale, as well as view the progress for the bale being wrapped.

A machine with a white box on top of it

Offset Twin Wrap

Tubeline's Twin Wrap Kit laminates two layers together to form a stronger 2-ply layer of plastic. The Twin Wrap Kit is offset, creating a 4" lead which ensures optimal overlap as the film is layered.

A close up of a tractor with a warning sign on it

Wrap Cutter

The integrated knife conveniently cuts the wrap automatically after you've dumped the bale, allowing you to stay in the tractor and start wrapping the next bale.
