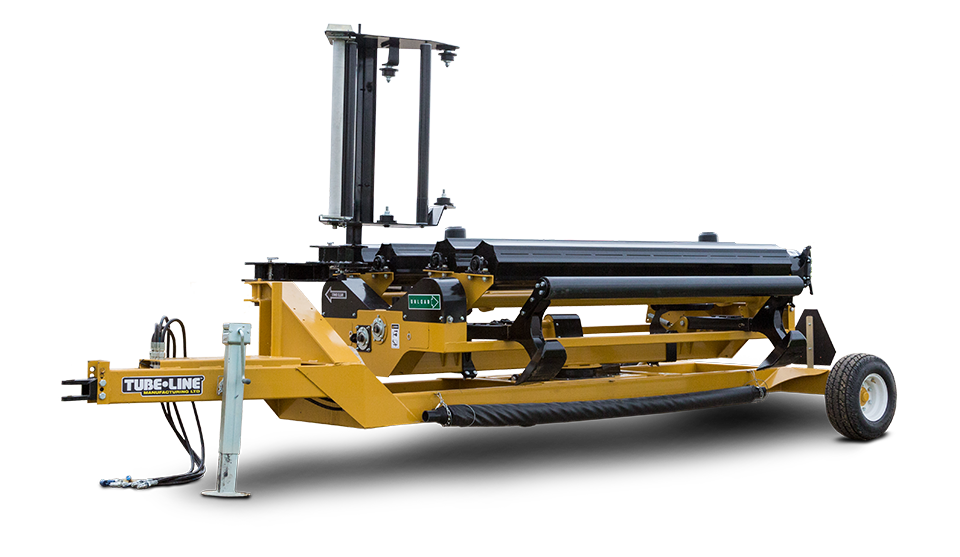

A yellow and black machine is sitting on a trailer on a white background.

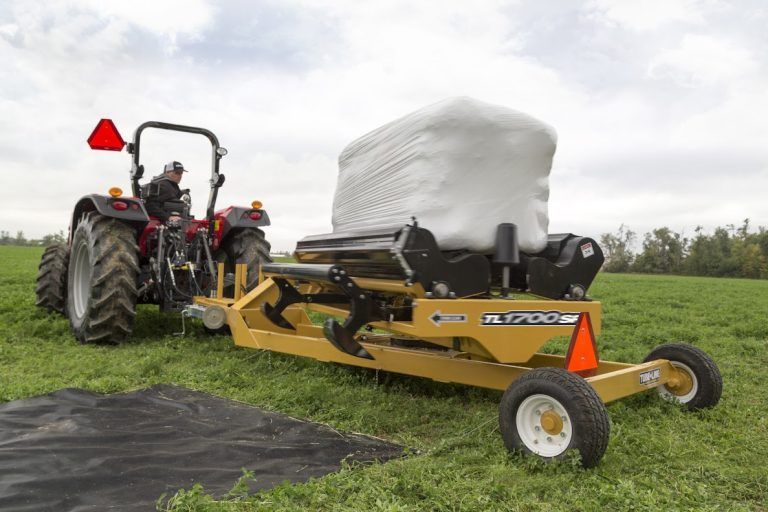

A tractor is wrapping a bale of hay in a field.

Tubeline TL1700SR

Ideal for small to medium sized operations, Tubeline's new TL1700SR Individual Bale Wrapper takes command of your square and round bale wrapping. An easy-to-use wrap counter allows you to set the desired number of rotations of wrap per bale and displays the current rotation.

Standard Features

  • Adjustable Guide Rollers
  • Film Crank
  • Bale Bumper
  • Extra Film Storage Area
  • Wrap Cutter
  • Wrap Counter

Specifications

Cycle Time: Under 30 seconds

Bale Compatibility: Round & Square Bales

Operation Type: Hydraulically Driven

Wrap Configuration: Offset Twin Wrap

HP Required: 30 HP

A tractor is wrapping a bale of hay in a field.
A close up of a PTO shaft on a machine

Drive Selection

Hydraulically powered, the TL1700SR can easily switch between round and square bales by moving the secondary drive shaft on either of the appropriate stub shaft. Each stub shaft changes the drive ratio to provide the appropriate advancement of the bale.

A machine with a white box on top of it

Offset Twin Wrap

Tubeline's Twin Wrap Kit laminates two layers together to form a stronger 2-ply layer of plastic. The Twin Wrap Kit is offset, creating a 4" lead which ensures optimal overlap as the film is layered.

A yellow and black vehicle with a white tire

Integrated Bale Mat

The wrapper's integrated bale mat protects the wrapped bale from being punctured as it is dumped.
