Minos TDYKM

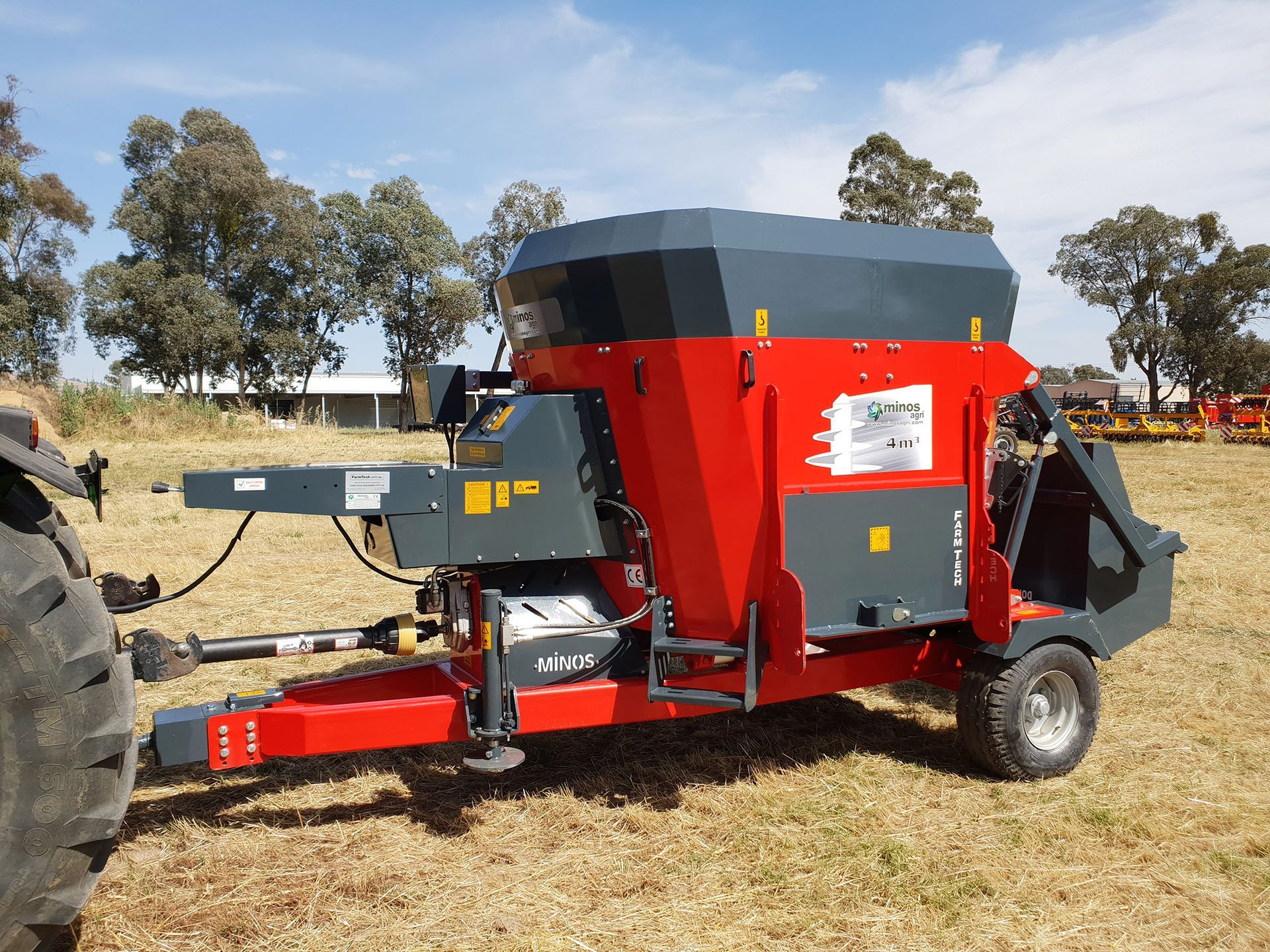

The Minos TDYKM Vertical Feed Mixer is a high-quality and long-lasting solution designed to meet the specific nutritional mixing needs of Australian livestock farming. This feed mixer ensures a consistent and homogenous blend of various animal feeds, promoting optimal livestock health and growth. With its robust and reliable structure, the TDYKM Feed Mixer is built to withstand the demands of daily farm operations, making it an essential tool for any farming enterprise.

TDYKM

The TDYKM Feed Mixer from Minos represents a significant advancement in animal feed preparation technology. Equipped with a vertical auger system and alloy knives, this mixer guarantees thorough and consistent mixing of feeds. The hydraulic loading bucket allows for easy and safe hauling of feeds into the mixer, while the digital scale integration ensures precise weighing of feed ingredients. Designed with user-friendly operation in mind, the TDYKM Feed Mixer saves time and labour, making feed preparation more efficient and effective.

MODEL T-DYKM 1.5 (HITCH TYPE) T-DYKM 2 T-DYKM 4
Volume (m³) 1.5 2 4
Width (Discharge unit closed) (mm) 1730 1710 2250
Width (Discharge unit opened) (mm) - 1850 2650
Length (Dipper closed) (mm) 1555 3340 3900
Length (Dipper opened) (mm) - 3900 4500
Length (mm) 1720 1860 2375
Length (mm) - 2670 3400
Number of Coulter Knives on the Auger 6 7 7
Weighing Unit No Optional Optional
Number of Loadcells No 3 3
Hydraulic Pressure System Uses Tractor's Optional Built in the machine
Dipper System NO Standart-150 Kg. Standart-300 Kg.
Wheels 150 mm/ 4 10/80/12 10/80/12
Unladen Weight (kg) 520 1050 1970
Required Tractor Power (HP) 5 8 25
A line drawing of a tractor on a gray background.

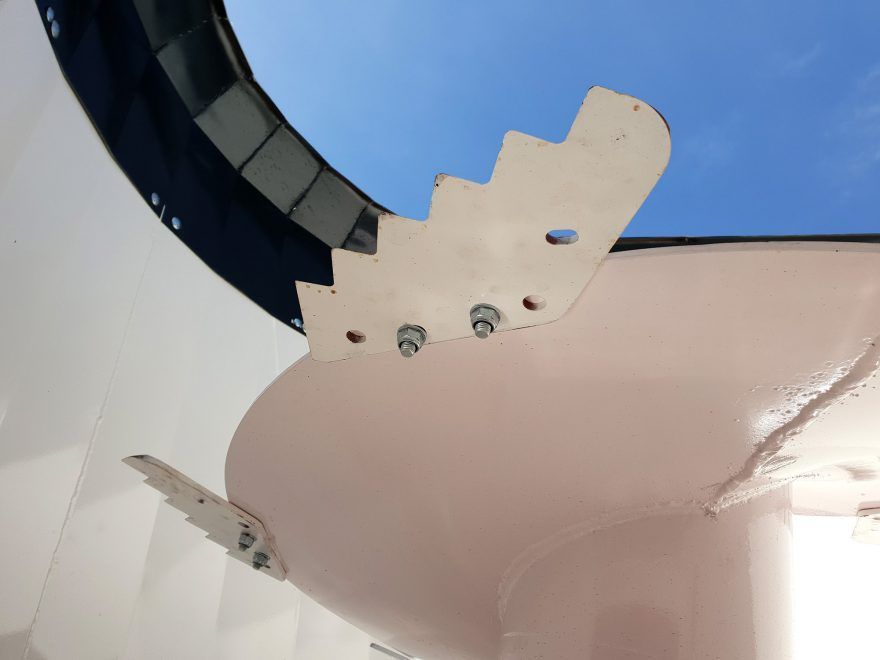

Alloy Knives

The mixer contains custom alloyed and designed knives, which cut feeds to the ideal size for optimal animal feeding and digestion.

A line drawing of a tractor on a gray background.

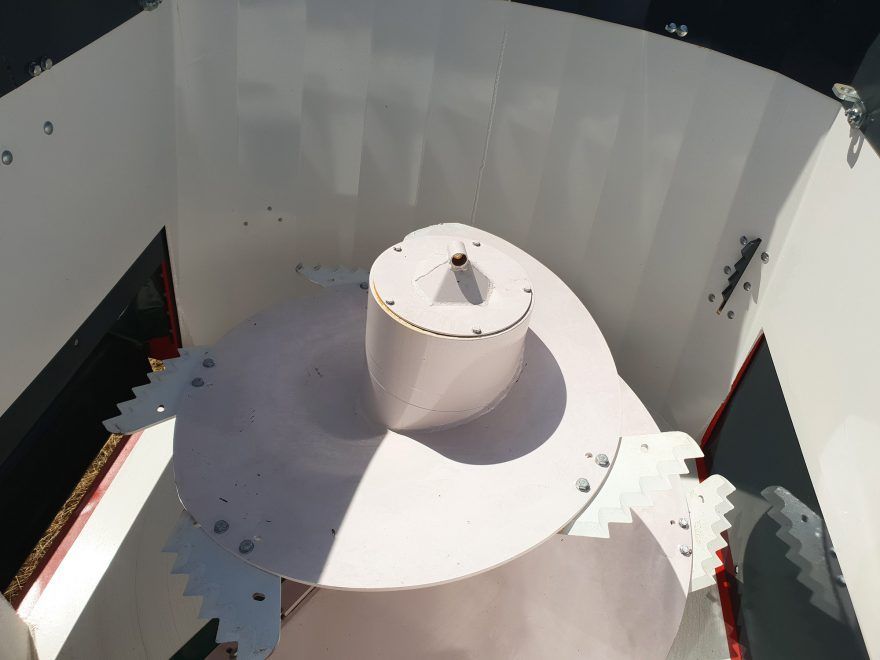

Vertical Auger System

Equipped with a vertically operating auger system, the TDYKM Feed Mixer ensures quick and efficient cutting, grinding, and mixing of different feed materials to produce a homogenous mixture.

A line drawing of a tractor on a gray background.

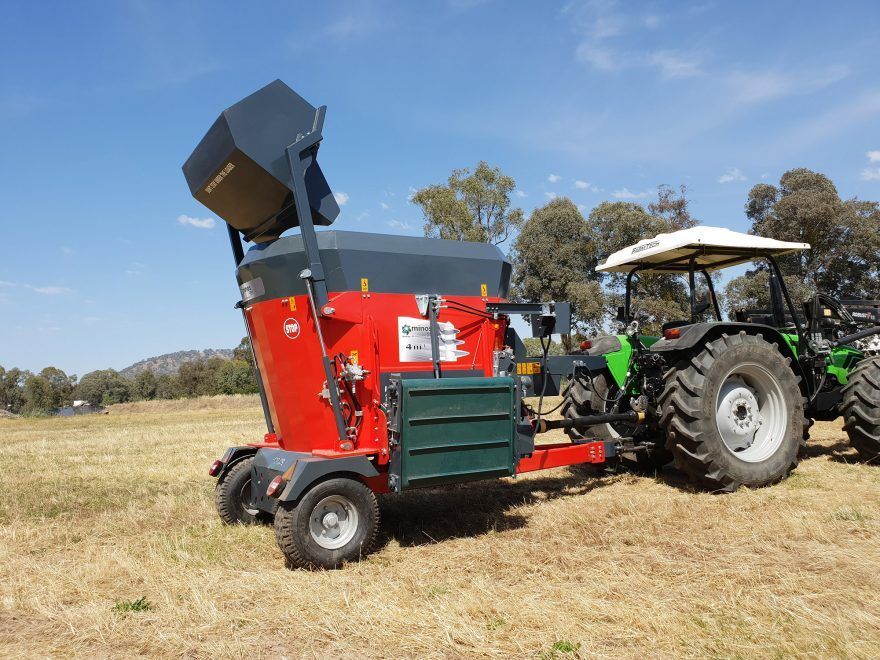

Hydraulic Loading Bucket

The hydraulic loading bucket enhances safety by enabling easy hauling of feeds and hays into the mixer while keeping the operator away from the mixing chamber.
