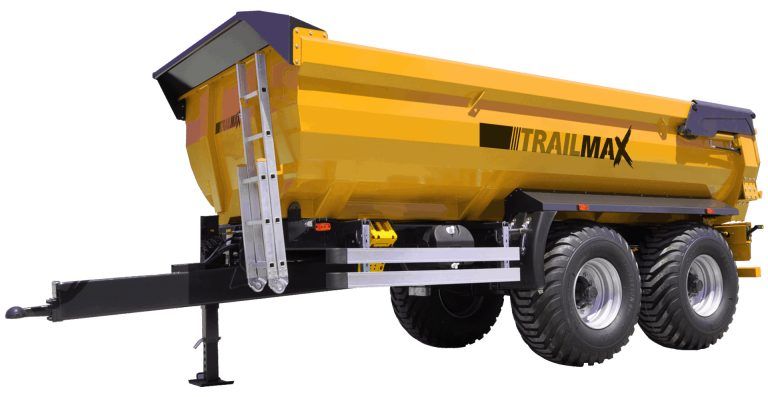

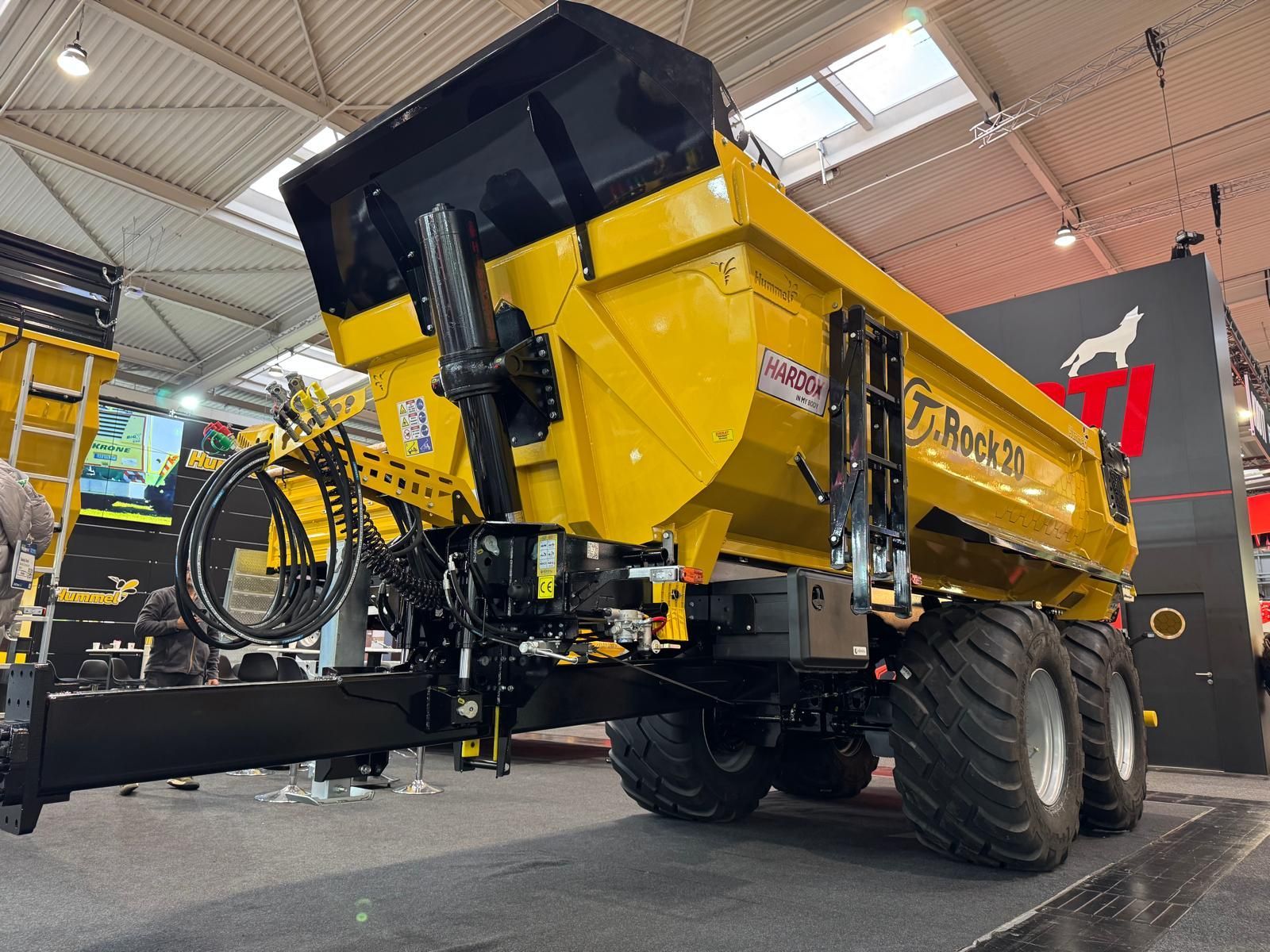

A yellow dump truck with a trailer attached to it.
A yellow dump truck with a trailmax trailer attached to it.

TrailMax TK Series

The TrailMax Rock Trailers are designed to handle the toughest hauling jobs with ease. These trailers are built to transport heavy loads of rocks, gravel, and other materials, making them ideal for construction and agricultural applications. The robust construction and advanced features ensure durability and reliability in the most demanding conditions.

Feature TK10 TK15 TK18
Empty Weight 3500 KG 4800 KG 5800 KG
Loading Capacity 10000 KG 15000 KG 18000 KG
Load Volume 8 M3 14.5 M3 16 M3
Loading Area 6 M2 11 M2 14 M2
Length & Width inside of Loading Bag 4150/2000 MM 4600/2200 MM 5300/2200 MM
Length & Width outside of Loading Bag 4250/2100 MM 4660/2350 MM 54000/3500 MM
Total Length • Width • Height 5620/2250/1950 MM 6200/2350/2300 MM 6880/2400/2500 MM
Lateral Height 700 MM 1000 MM 1000 MM
Floor • Wall Thickness 5 / 5 MM 5 / 5 MM 5 / 5 MM
Height From Ground 1100 MM 1100 MM 1200 MM
Wheel Track Length 1700 MM 1800 MM 1800 MM
Suspension PARABOLIC PARABOLIC PARABOLIC SPRING
Tires 445/45R 19,5 445/45R 19,5 550/60-22,5
Maximum Speed 40 KM 40 KM 40 KM
Roll-over System Backside REAR REAR REAR
Number of Telescopic Cylinders And Number of Cylinder Sections 1 / 5 1 / 6 1 / 6
Oil Need 18 LITER 30 LITER 30 LITER
Operating Pressure 180 PS 180 PS 180 PS
Minimum Tractor Power Requirement 100 HP/ 74 KW 140 HP/ 104 KW 160 HP/ 119 KW
Optional Brake System HYDRAULIC AIR HYDRAULIC AIR HYDRAULIC AIR

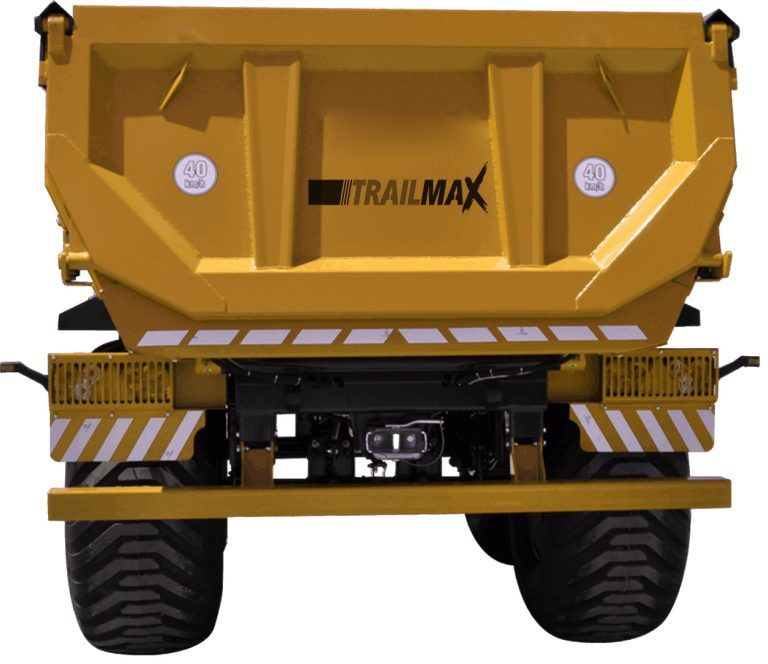

The back of a yellow trailmax dump truck

High Payload Capacity

The TK series offers impressive payload capacities, with models TK10, TK15, and TK18, allowing for the transportation of large quantities of materials.

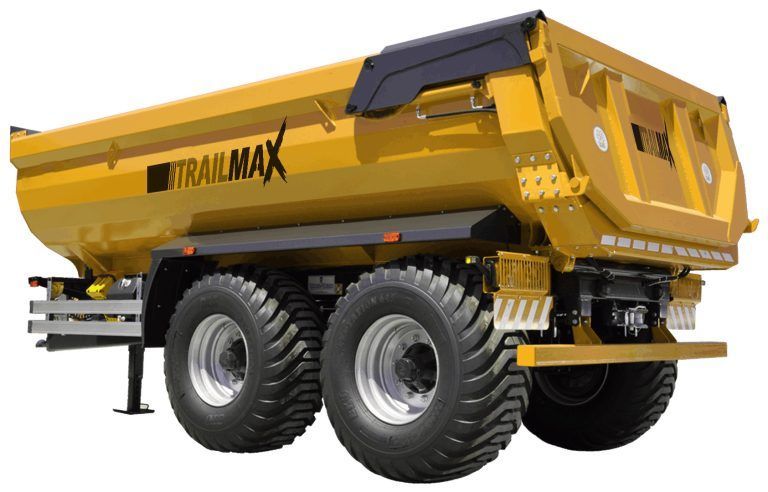

A yellow dump truck with a trailmax trailer attached to it.

Heavy-Duty Construction

These trailers are built with a sturdy frame and high tensile perimeter rails, ensuring strength and stability during transport.

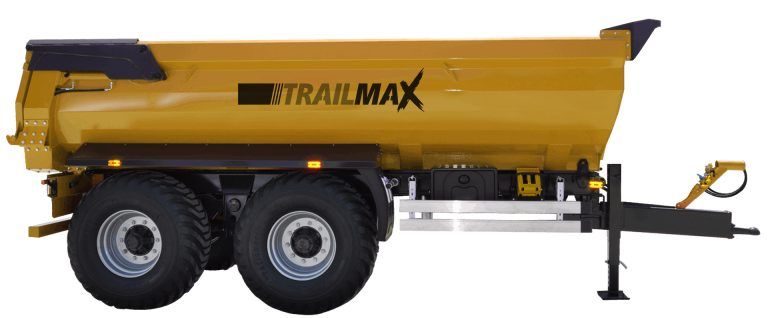

A yellow dump truck with trailmax written on the side

Advanced Safety Features

Equipped with electric brakes, safety chains, and a sealed harness system with LED lighting, the TrailMax Rock Trailers ensure safe and secure transportation.
