Description

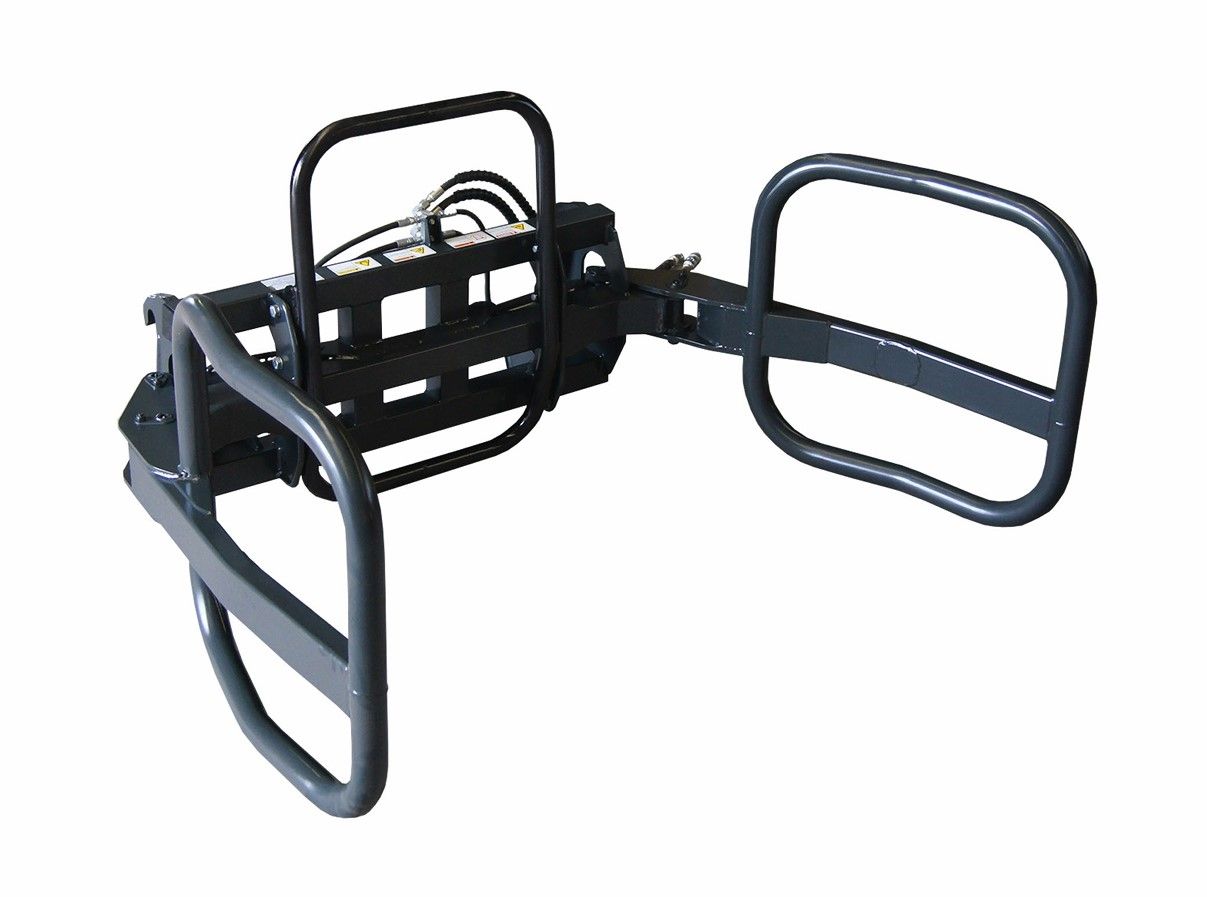

Round Bale Grab (SH-90BG)

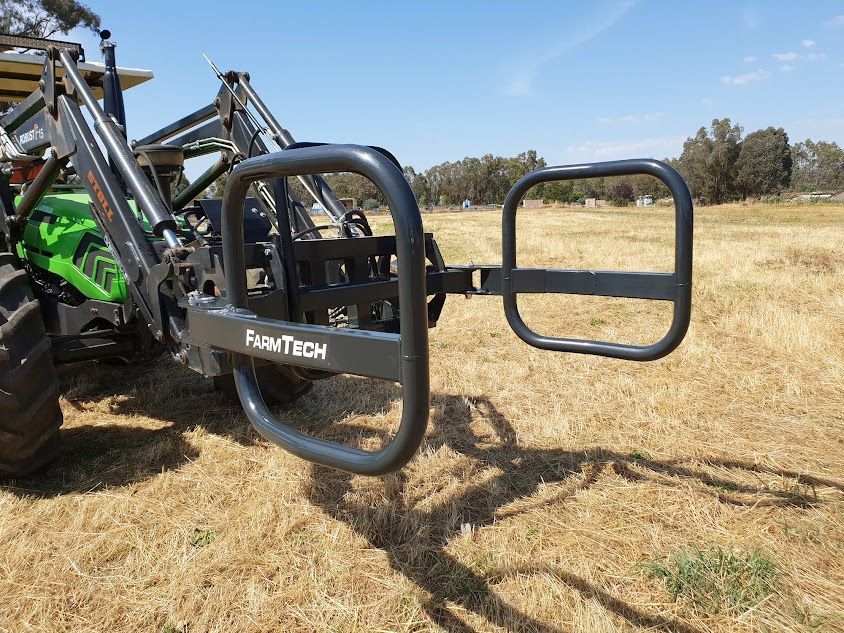

With the FarmTech Round Bale Grab attachment, farmers will be able to lift and transport wrapped silage bales, hay, and other round bales without damaging the plastic wrapping or net. Our sturdy, yet easy to handle design uses two hydraulic cylinders and can handle bales up to 1.5m in diameter. The Bale Grab also comes with complete euro brackets and hydraulic hoses
Additional Information
Part No: SH-90BGPrice: POA
Product Features
With the FarmTech Round Bale Grab attachment, farmers will be able to lift and transport wrapped silage bales, hay, and other round bales without damaging the plastic wrapping or net. Our sturdy, yet easy to handle design uses two hydraulic cylinders and can handle bales up to 1.5m in diameter. The Bale Grab also comes with complete euro brackets and hydraulic hoses
Product Specifications
| Total length (mm) | 1359 |
| Height without guide (mm) | 780 |
| Height with guide (mm) | 900 |
| Total width (mm) | 1833 |
| Weight (kg) | 170 |
| Operating width at the front end (mm) | 195-1713 |
| Operating width at the centre of arm (mm) | 714-1639 |
| Arm length (mm) | 810 |
| Arm height (mm) | 780 |
| Max. load (kg) | 1200 |
| Available bale size (mm) | 1200-1500 |
| Available oil pressure(bar) | 180-210 |
Supporting Documents
Download BrochureDownload Manual
