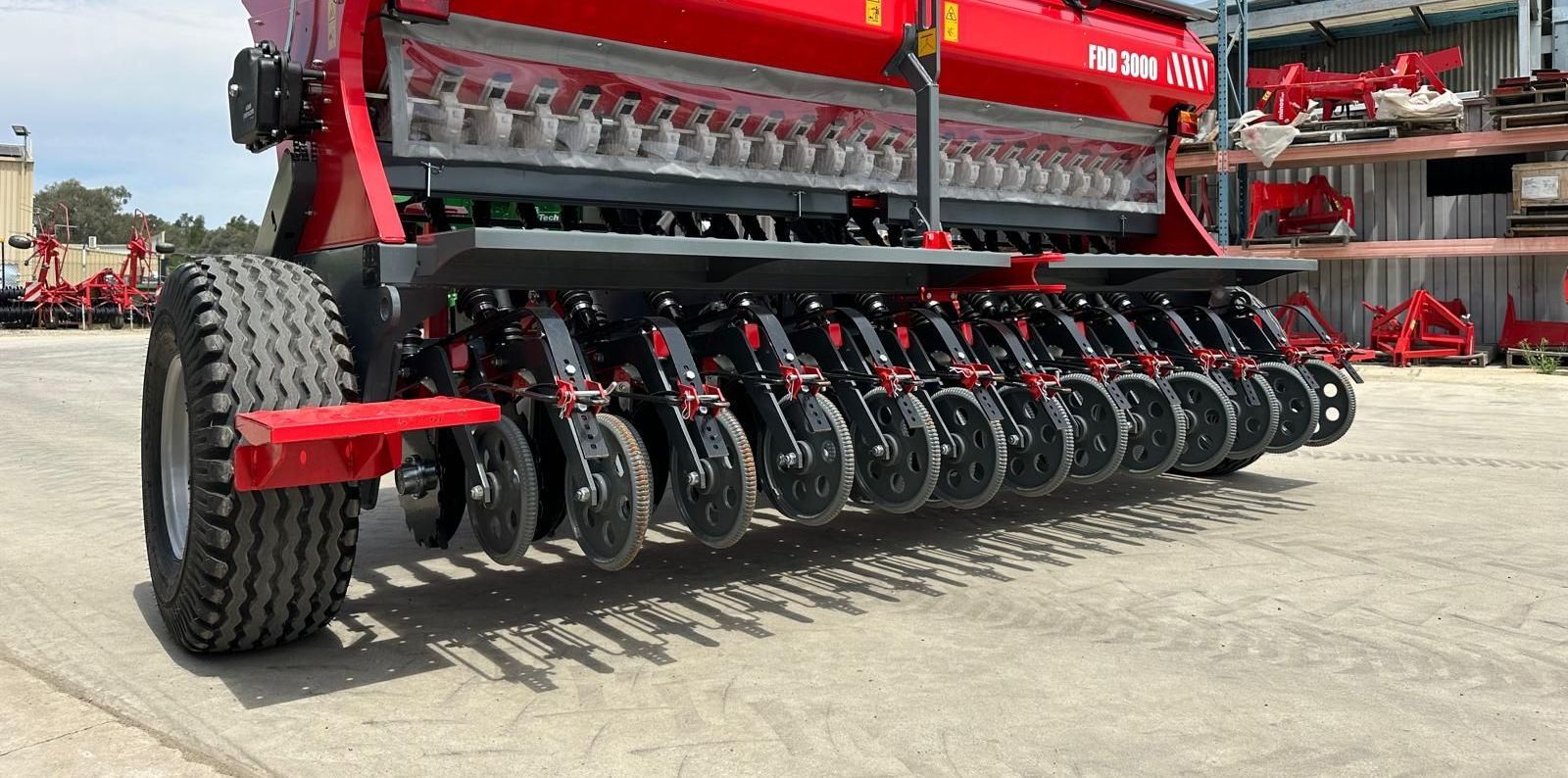

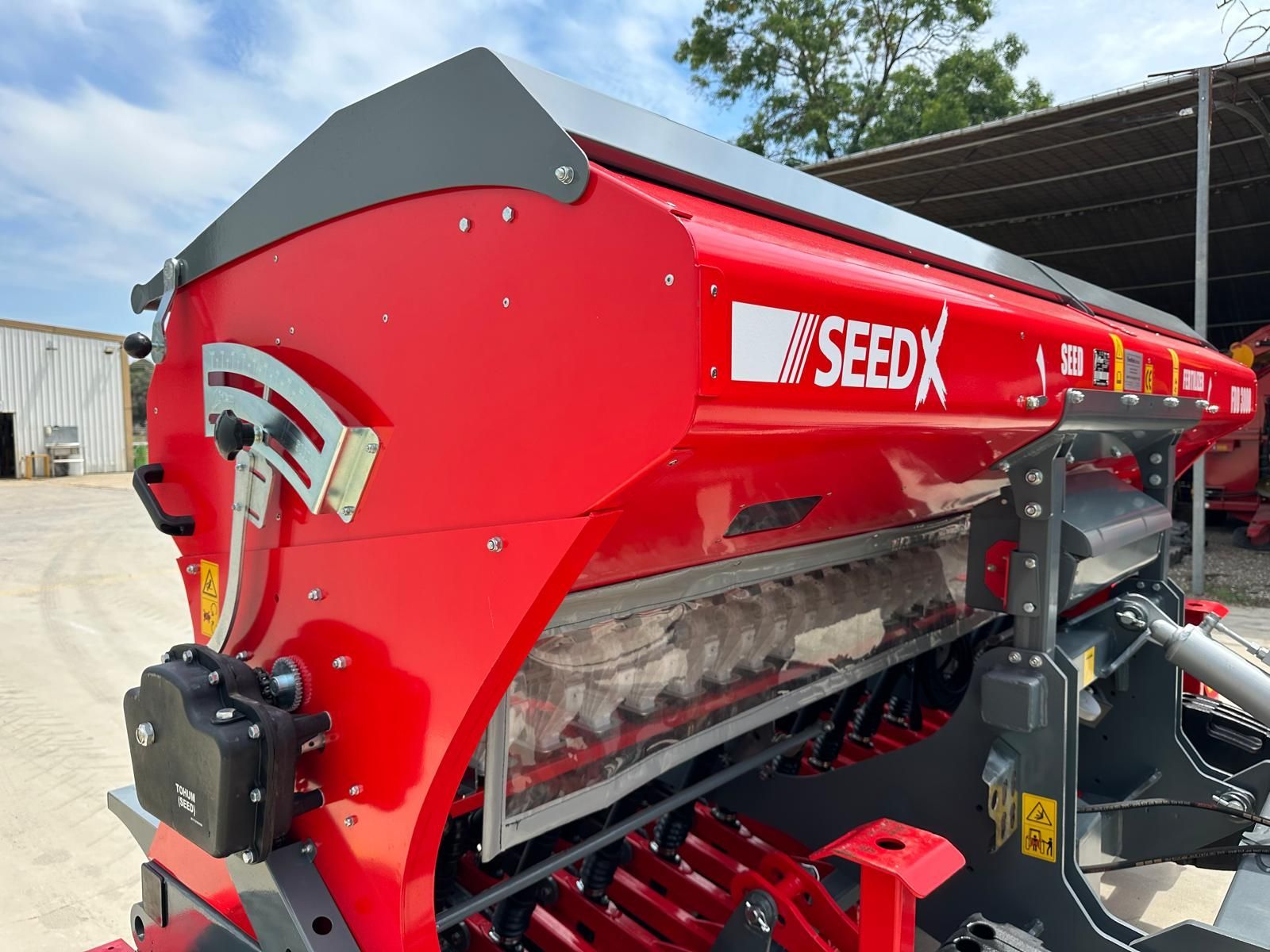

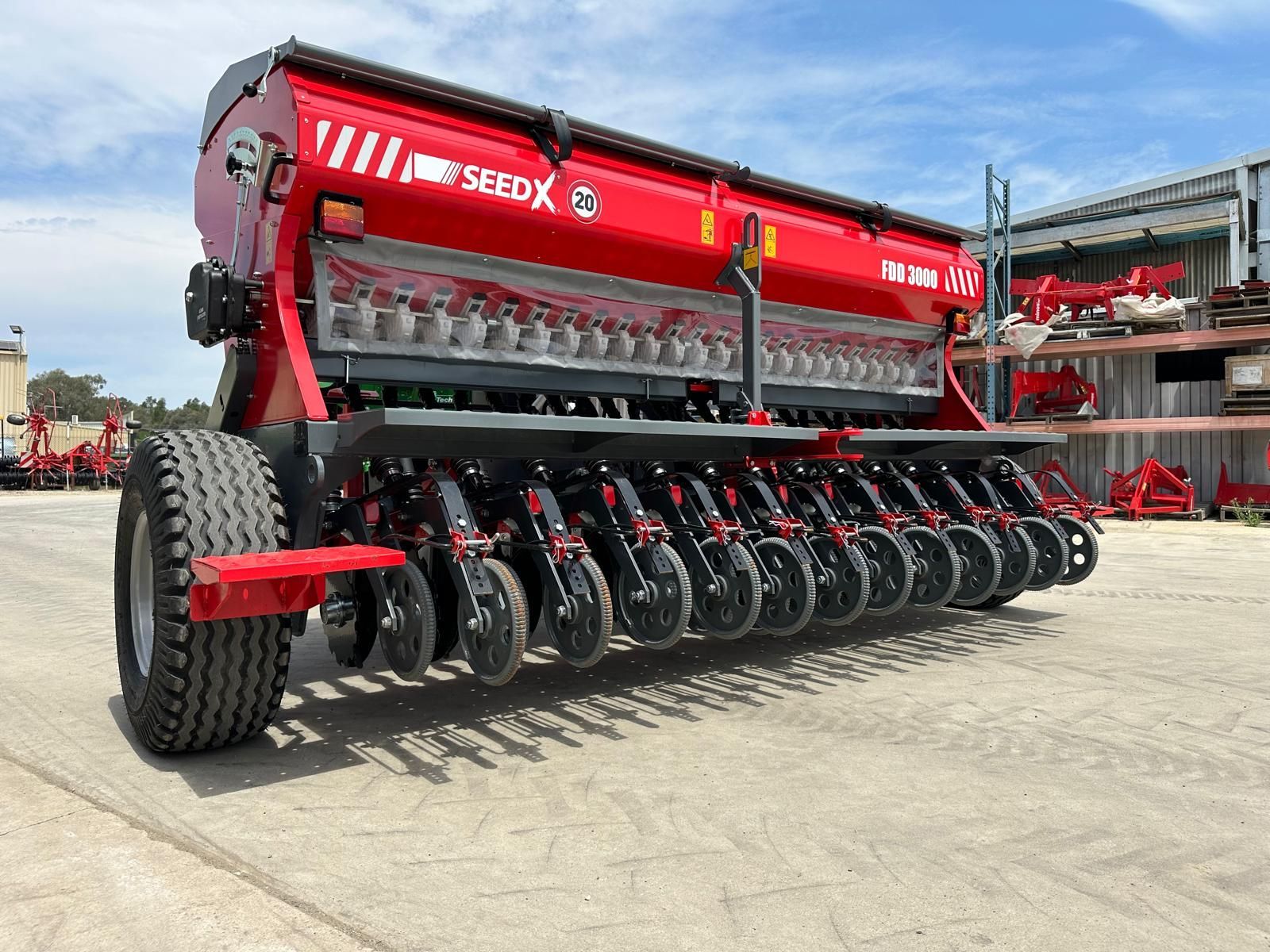

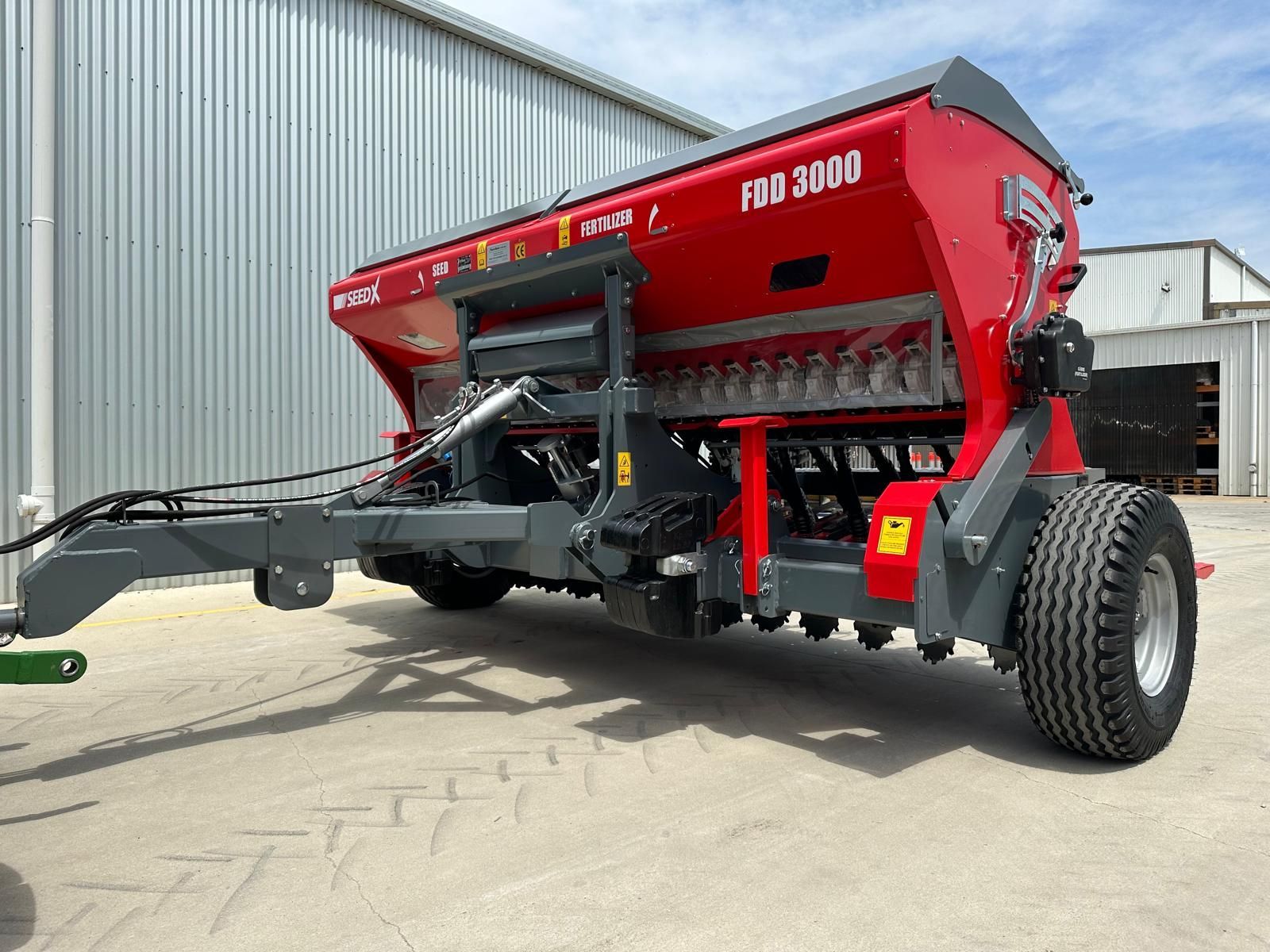

The Irtem FDD is a trailing 20 or 24 row, double disc seed drill with press wheel, covering harrows and fertiliser box. Various seed sizes are usable due to the adjustable seed wheels.  The drill features a 910L or 1080L seed tank and a 590L or 700L fertiliser capacity. Two gearboxes are used in order to make dosage for seed and fertiliser infinitely adjustable and independent of each other.

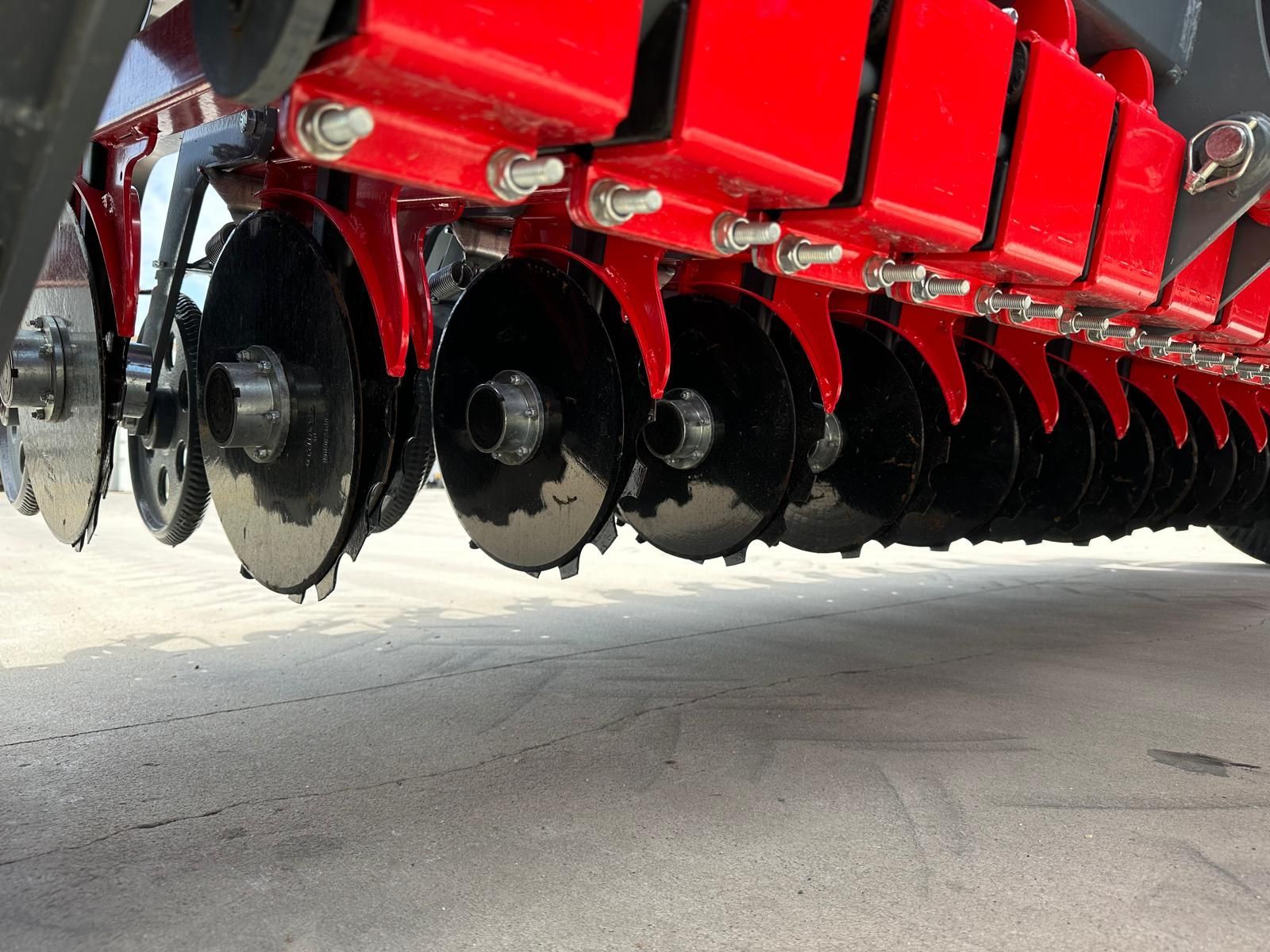

The FDD features over sized bearings on each disc. Each double disc row arm is mounted to a 4x triangular rubber mounted block, reducing moving parts and increasing the life of the components.



Additional Information

Part No Model Price
FDD 2500 20 ROW POA
FDD 3000 24 ROW POA

Product Specifications

Rows: 20
Seed Spacing: 125mm
Working width: 250cm
Total Width: 341cm
Total Height: 203cm
Total Operating Length: 376 cm
Weight: 1650kg ( empty )
Seed Tank Capacity: 910L
Fertiliser Tank Capacity: 590L
Required Tractor Power: 70HP
Discs Diameter: 320mm / 3mm ( Plain / Scallop )

Down pressure per Coulter Assy. 35 – 150 kg * refer to operator guide
Minimum seed sowing rate 2kg / Ha >
Road light kit
Rear Tow hitch fitted
Loading Platform
Tyre size 260 / 70 – 15.3
Adjustable seed covering Harrow tine
Adjustable seed metering wheels, small/medium/large seeds
Adjustable downpressure to Disc Assembly
Adjustable drawbar height Tow Eye
Ground drive engage/disengagement
Seed Calibration Tray
Variable adjustable rate gearbox’s – seed / fertiliser
( No Ha. Metering Unit fitted as standard.)

Equipment Options

Farmscan Jackal Ha. metering controller.
Hyd. Row Markers
