Jeantil TP Series

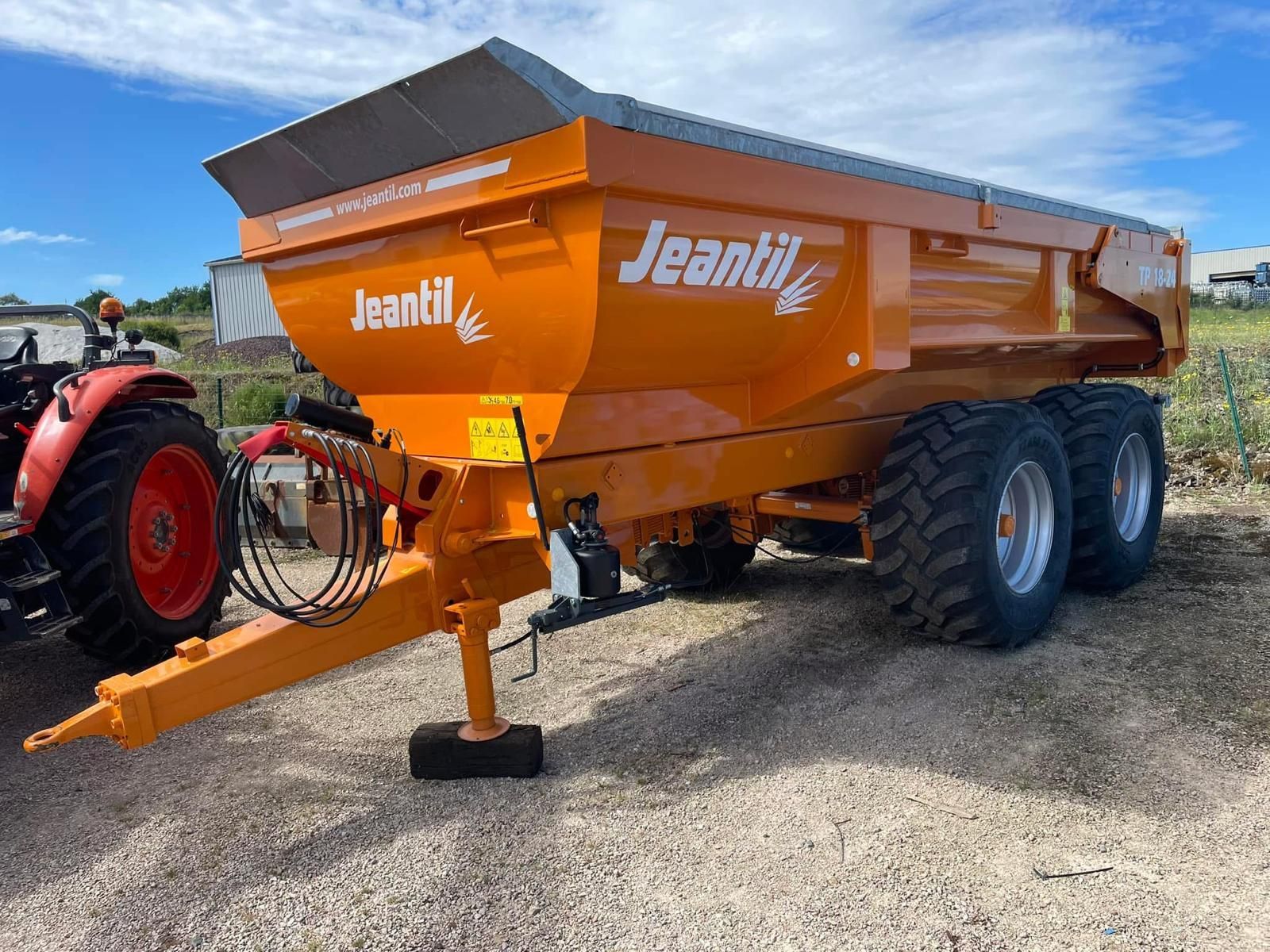

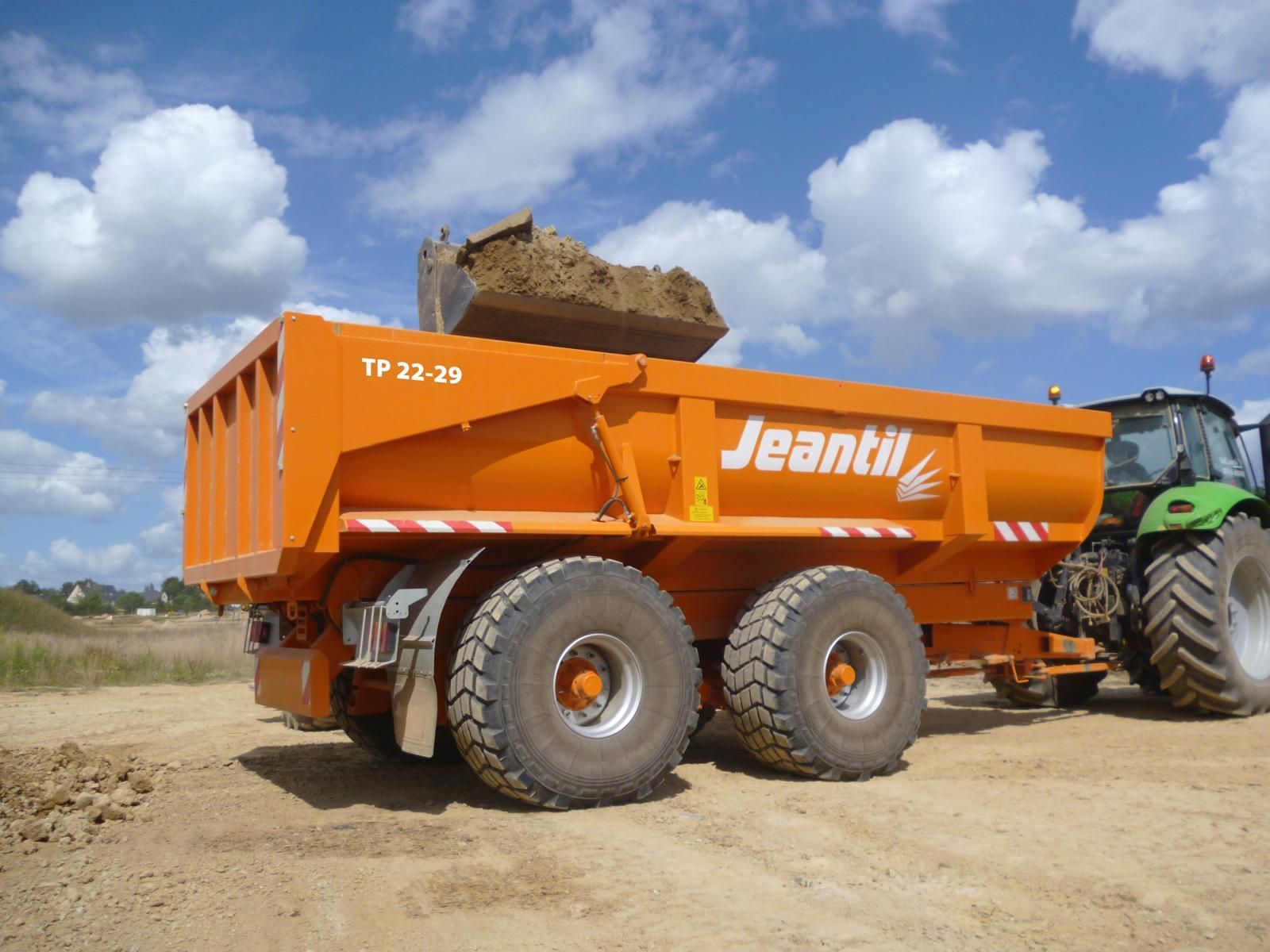

The TP Series is a heavy-duty dump trailer range engineered for demanding earthmoving, construction and agricultural applications. Featuring a Hardox 400 HB body for exceptional abrasion resistance, a semi-cylindrical body design with a 60° tipping angle for fast, complete unloading, and a reinforced chassis for durability and stability, the TP Series is built to handle bulk materials in the harshest working conditions. Available in a range of capacities and configurations, the TP Series delivers the versatility, strength and productivity required for high-volume transport operations.
Model
Model:
TP Series (14-29 Tonne)
All specifications can be customised to suit contractor and farmer requirements.
- Heavy-duty monocoque dumper trailer design for demanding agricultural and earthmoving applications
- Available in capacities from 14 to 29 tonnes
- Tandem or bogie axle configurations with rear steering axle for improved manoeuvrability
- Hard-wearing Hardox 400 HB body construction designed to withstand harsh operating conditions
- Single-line hydraulic braking system
- Hydraulic rear door locking system
- Standard load transfer system for improved traction and stability
- Adapted tipping compressor with selector switch, allowing the trailer to operate from either the tractor's hydraulic system or the onboard tipping compressor
- K80 hitch coupling as standard
- Large flotation tyres, with 600/55R26.5 tyres fitted to TP14-20 models and 650/55R26.5 tyres fitted to larger models
- Optional silage extension kits available in 300 mm, 600 mm or 900 mm heights for increased carrying capacity
- Optional mudguards available

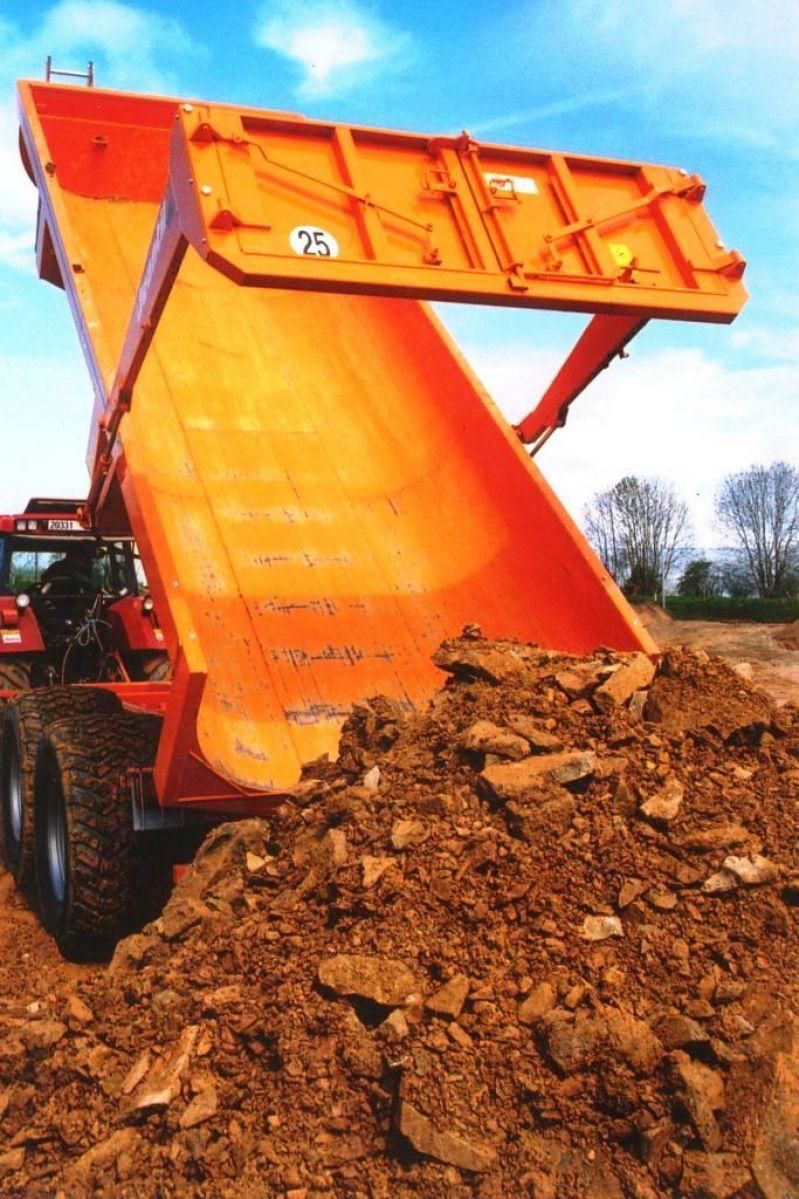

- Engineered for efficient unloading with up to a 60deg tipping angle and reinforced chassis design
- Suitable for construction and harsh worksite conditions
